Homepin - DMD High Voltage PIGGY BACK Board WMS PCB

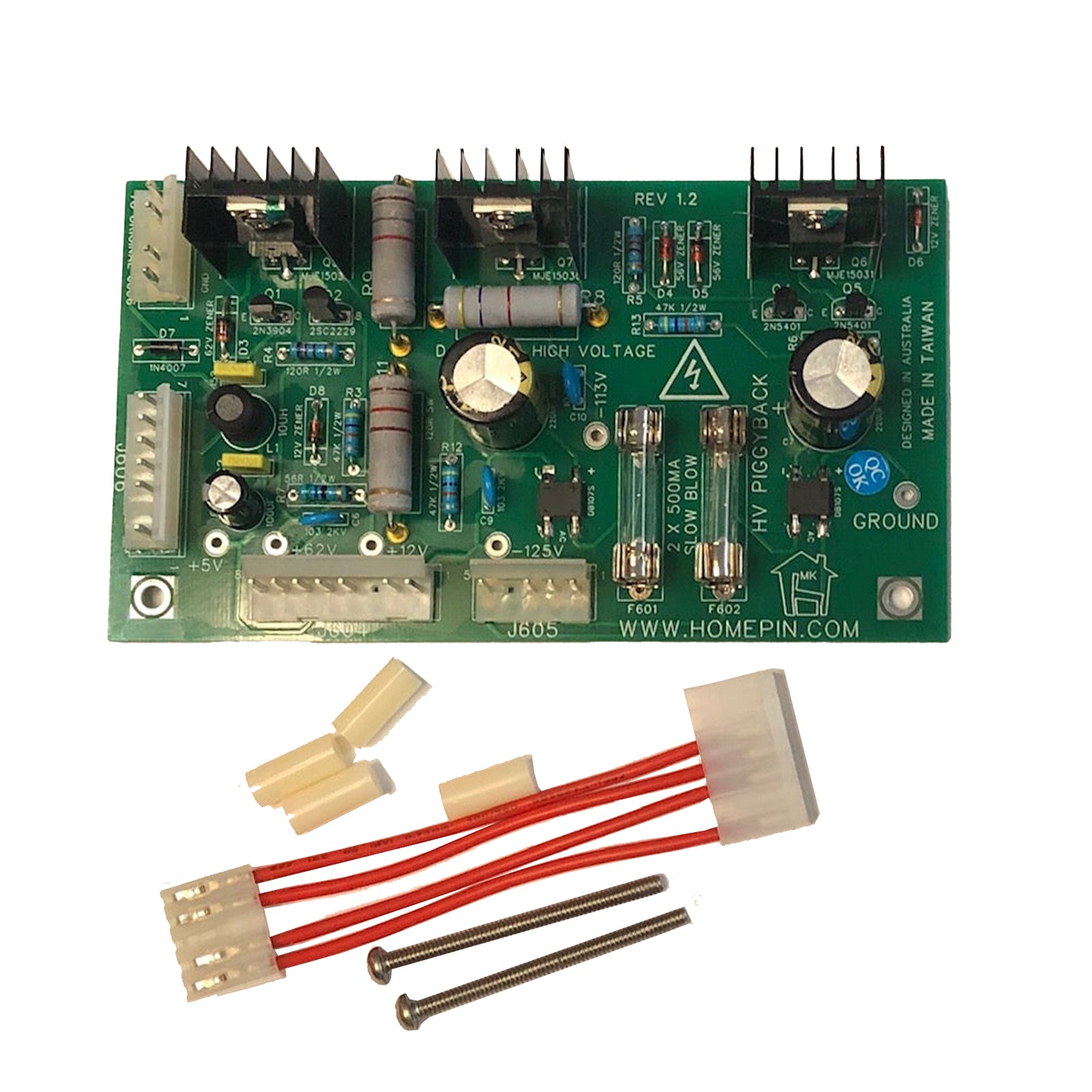

Introducing the Homepin WMS HV Piggy Back PCB!

Piggy back PCB replaces burnt Hi-Voltage section on DND Driver PCB

This updated version of our old favorite has even more beefed up components, better parts spacing and much thicker PCB tracks than before.
It is supplied with a FULL mounting kit that has everything you need to install the board (apart from a Phillips screwdriver).
All parts, bolts, spacers, insulation paper and cable harness are supplied in the package.

A brief install instruction sheet is included in the package and it has a link to the full installation instructions with detailed color pictures here:

Note that there are NO modifications to the original machine, no wires to cut or holes to drill. The machine can be returned to factory original in minutes.
We are well aware that many collectors are choosing to replace the glass DMD with a colour DMD, however there are still many instances when a repair like this might be preferable.
A machine might be for sale and the sell price is critical making the installation of a colour DMD uneconomical.
A machine might have just been set up at a show or turned on for friends to play when the DMD power supply starts causing display issues.
This board could even be installed to remove the strain and load from the DMD driver board in a machine thus prolonging the machines life and preventing the DMD driver board from 'crisping up' or potentially catching fire.

    NO ELECTRONIC KNOWLEDGE REQUIRED! - follow the instruction sheet or the on-line instructions.........that easy!

    Game Compatabilty:

    • The Adams Family
    • Black Rose
    • Corvette
    • Creature from the Black Lagoon
    • Dracula
    • Demolition Man
    • Dirty Harry
    • Doctor Who
    • Fish Tales
    • Gilligans Island
    • Hurricane
    • Indianan Jones
    • Indianapolis 500
    • Jack-Bot
    • Johnny Mnemonic
    • Judge Dredd
    • No Fear
    • Popeye
    • Red & Ted's Road Show
    • Star Trek TNG
    • Terminator
    • The Flinstones
    • The Getaway: High Speed II
    • The Party Zone
    • The Shadow
    • The Twilight Zone
    • Theater of Magic
    • WhiteWater
    • WHO Dunnit
    • World Cup Soccer
