Homepin - Flipper Board SET for WMS DMD Type 1 A-15894 (No Mech)

Newly designed replacement for Williams /Bally WPC Type 1 flipper opto board for use in the double flipper opto assembly WMS A-15878.

Reference:
A-15894
A-15878
5490-12451-00 pcb
A-20209

These boards (2 Pack) are direct "screw-in" replacements for missing or damaged PCBs (no Mech included)

If you need the Mechs included see WMS A-15878 H-0001-M

New improvements include a buffer transistor after the optos that allow standard,
easily available optocouplers to be used. This makes repairs simple & inexpensive
This latest version also includes indicator LEDs to easily see if the optos are
working correctly and voltage test points to measure them with a meter.

INCLUDED:

• 2 x replacement flipper opto boards often discarded due to replacements being unavailable.
• Direct replacement for the original boards - uses the same wiring in the machine
• Supplied ready made and fully tested before dispatch
• Uses commonly available parts so there will be no future repair issues
• No electronic knowledge required - simply remove four screws and 2 plugs and new boards mount in exactly the same position as the originals
• NO modifications at all to the original machine in any way and NO soldering required
• Boards can be removed at any time in minutes and leave no trace they were ever in the machine
• Buffer transistors mean standard optos can be used (available at any electronics store)
• All you need are nut drivers (or a small shifting spanner) and about five minutes

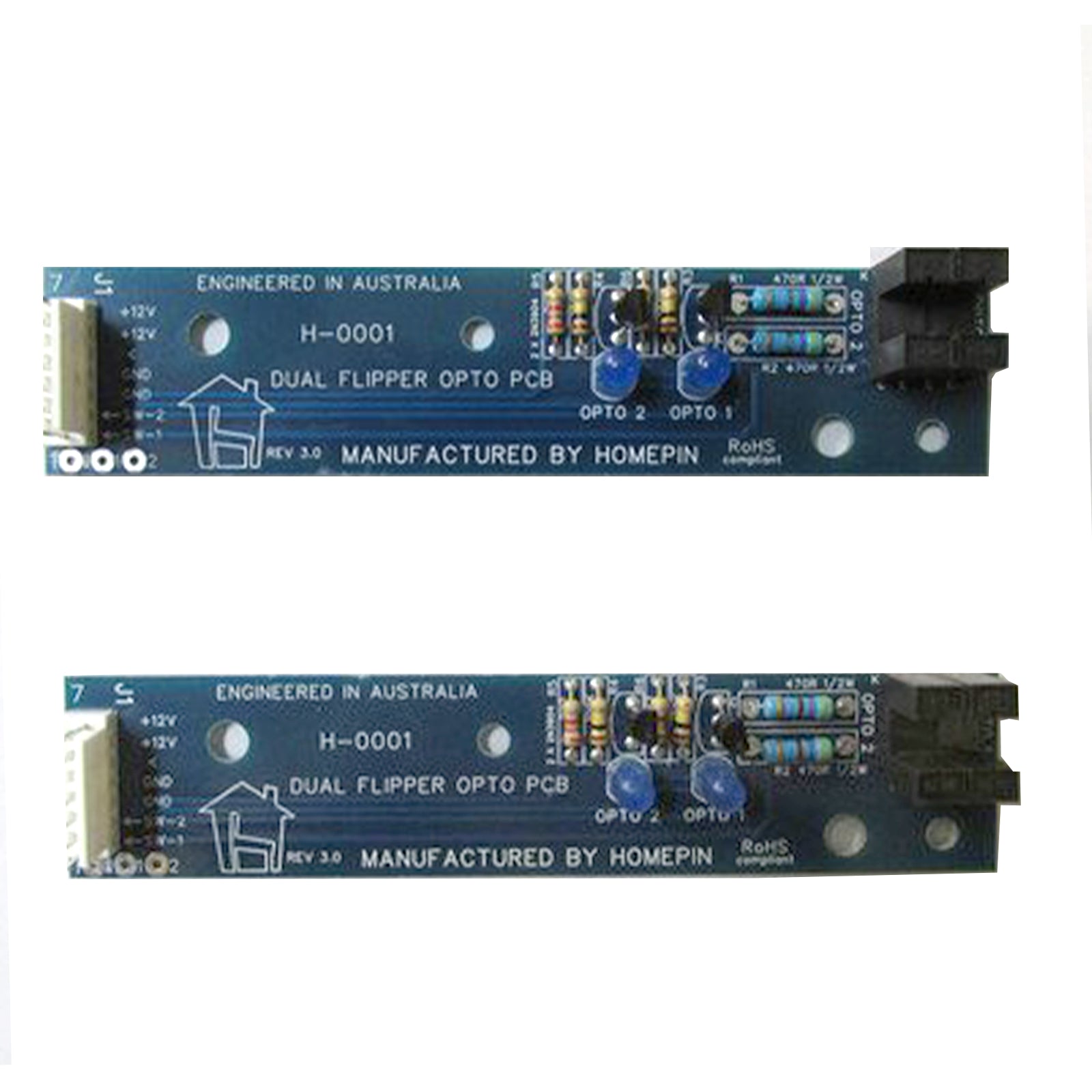

  Supplied in pairs as shown
• Replaces WMS A-15878
  No surface mount parts are used WMS A-15430
