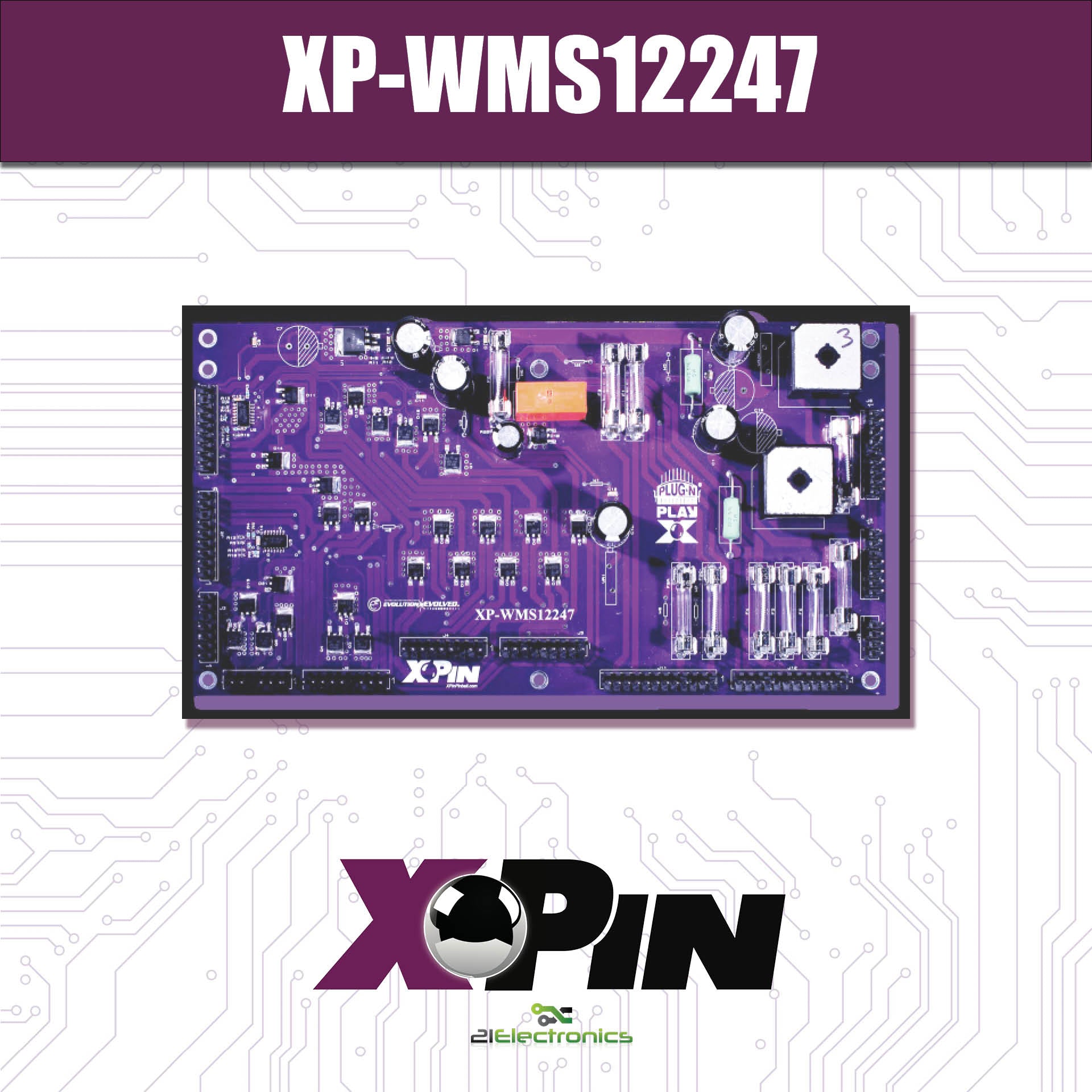

XP-WMS12247 Williams Power Driver

Nitro Pinball Sales

SKU: XP-WMS12247 Pwr Drvr


Features include:

  • Plug and Play
  • Board is manufactured with 2 oz copper to support high current loads
  • Circuit design uses MOSFET technology to reduce power consumption and improve reliability when compared to the original TIP36C circuit design.
  • Professionally assembled in USA for top quality
  • 2 Year Manufacturer’s Warranty against all manufacturing defects


Because the XP-WMS12247 supports multiple games, and each game has their own individual fusing requirements, no fuses will be provided.   All fuse locations match the original Williams board and are loaded as such.  A select few games require the removal of wire jumpers.  These games and associated wire jumper removals are located on the back of this instruction sheet.

Supported Games
Bad Cats, Big Guns, Black Knight 2000, Bugs Bunny Birthday Bash, Cyclone, Diner, Dr Dude, Earthshaker, Elvira and the Party Monsters, Jokerz, Mousin Around, Police Force, Pools Sharks, Radical, Riverboat Gambler, Roller Games, Space Station, Swords of Fury, Taxi, The Bally Game Show, Transporter the Rescue, Whirlwind
